How to Install an Electric SUP Motor: Complete Step-by-Step Electric SUP Motor Installation Guide
By Blake Carmichael, BLU3
Installing an electric SUP motor transforms a standard paddleboard into a powerful and efficient watercraft. This guide provides an accurate and comprehensive overview of the installation process for the Jaykay E-Fin 2.0, an innovative electric SUP motor specifically designed to seamlessly integrate with most paddleboards without complicated mounting procedures. Throughout this guide, you will learn about the simple plug-and-play installation, essential safety precautions, and tips to optimize the performance of your new motor. Whether you’re a novice or an experienced paddler, mastering the installation will enable you to enjoy the water more efficiently, providing solutions for easy navigation and enhanced paddling performance.
Tools and Materials Needed:
The Jaykay E-Fin 2.0 has been engineered for minimal installation requirements, eliminating the need for specialized tools in most cases. In general, you will require only basic items for a smooth setup:
- Standard Allen Wrench: Typically included with the motor for securing components.
- Protective Gloves: Recommended for safe handling of electrical components.
- Waterproof Housing Maintenance Kit: For periodic sealing inspection and upkeep.
Unlike traditional electric motors, the Jaykay E-Fin 2.0 is designed to utilize your paddleboard’s existing fin box system, enabling quick attachment without drilling or permanent modifications.
Installation Steps:
The ease of installing the Jaykay E-Fin 2.0 is one of its key advantages. Follow the simplified installation process below:
- Preparation: Ensure your paddleboard is clean and dry. Unbox the Jaykay E-Fin 2.0 and verify all components are intact.
- Insert Motor into Fin Box: Slide the motor unit into the paddleboard’s existing fin box. The design is compatible with standard US and International fin boxes.
- Secure the Motor: Use the included fastening mechanism (typically a thumbscrew or Allen bolt) to secure the motor firmly within the fin box. No drilling or additional hardware is necessary.
- Attach the Battery Pack: The Jaykay E-Fin 2.0 comes with a dedicated, waterproof lithium-ion battery pack designed to mount on your paddleboard using the supplied straps or brackets. Position it according to your comfort and balance preferences.
- Connect Plug-and-Play Wiring: The motor and battery system use pre-wired, plug-and-play connectors that snap together without tools, making electrical connection straightforward and safe.
- Power On and Test: Switch on the system and perform a brief operational test in a safe environment to ensure everything functions correctly before your first outing.
By following this streamlined installation, you can enjoy your electric SUP motor quickly without the need for complex setups or permanent board modifications.
Safety Precautions:
Safety remains a top priority despite the simplified installation process. Please observe these precautions:
- Wear Protective Gloves: To prevent electrical shocks and protect hands during handling.
- Ensure Dry Conditions: Install and connect electrical components in dry conditions to avoid moisture exposure during setup.
- Inspect Seals: Regularly check waterproof seals on the motor and battery connections to prevent water ingress.
Adhering to these measures supports both your safety and the longevity of your equipment.
Tips for Optimal Performance:
To maximize your electric SUP motor’s functionality, consider these tips:
- Charge Battery Fully Before Use: Follow the manufacturer’s charging instructions to optimize battery lifespan and performance.
- Perform Regular Maintenance: Clean the motor and connections after use, especially removing debris and checking seals.
- Store in Dry Conditions: When not in use, keep your electric SUP motor and battery dry to prevent wear.
These practices will help maintain consistent and safe operation of your Jaykay E-Fin 2.0.
What Is an Electric SUP Motor and Why Choose the Jaykay E-Fin 2.0?
Electric SUP motors are innovative devices providing propulsion assistance for stand-up paddleboards. The Jaykay E-Fin 2.0 offers a uniquely user-friendly and efficient design that leverages the paddleboard’s existing fin box to simplify installation and maximize board integrity.
Key advantages of the Jaykay E-Fin 2.0 include:
- Plug-and-Play Installation: No drilling, permanent mounts, or wiring expertise required.
- Compact and Lightweight: Easily transportable and unobtrusive when in use or removed.
- Integrated Waterproof Design: High-quality seals and housing protect the motor and battery against water damage.
These features make the Jaykay E-Fin 2.0 an excellent option for both casual and experienced paddleboarders seeking powered assistance.
How Does the Jaykay E-Fin 2.0 Enhance Your Electric Stand Up Paddle Board Experience?
The Jaykay E-Fin 2.0 enhances your paddleboarding by providing effortless propulsion, which enables longer excursions and exploration with less fatigue. Its design respects board balance and maneuverability, ensuring natural handling while adding power assistance. The ease of removal also allows for quick conversion back to traditional paddling if desired.
What Are the Key Specifications and Power Features of the Jaykay E-Fin 2.0?
Based on the latest official specifications from Jaykay, the E-Fin 2.0 offers the following features:
These specifications are directly sourced from Jaykay’s latest product documentation to ensure accuracy and reliability.
Battery and Electrical System Details
The Jaykay E-Fin 2.0 includes a proprietary, dedicated waterproof lithium-ion battery pack designed specifically for this motor system. Because of this integrated design:
- Users should not use third-party or alternate battery types such as lead-acid or general lithium-ion batteries.
- Battery connection is performed via pre-configured, waterproof plug-and-play connectors supplied with the product—there is no need for manual wiring or splicing.
- All necessary circuit protection, waterproof seals, and fuse components are incorporated within the battery and motor assembly, removing the need for user-installed additional fuses or sealants.
This design simplifies setup and reduces the risk of incorrect installation or damage.
How to Physically Install the Electric SUP Motor: Step-by-Step Assembly Instructions
What Are the Detailed Steps to Mount the Jaykay E-Fin 2.0 on Your Paddle Board?
- Locate Fin Box: Identify your paddleboard’s fin box, ensuring it matches the compatible standards noted by Jaykay.

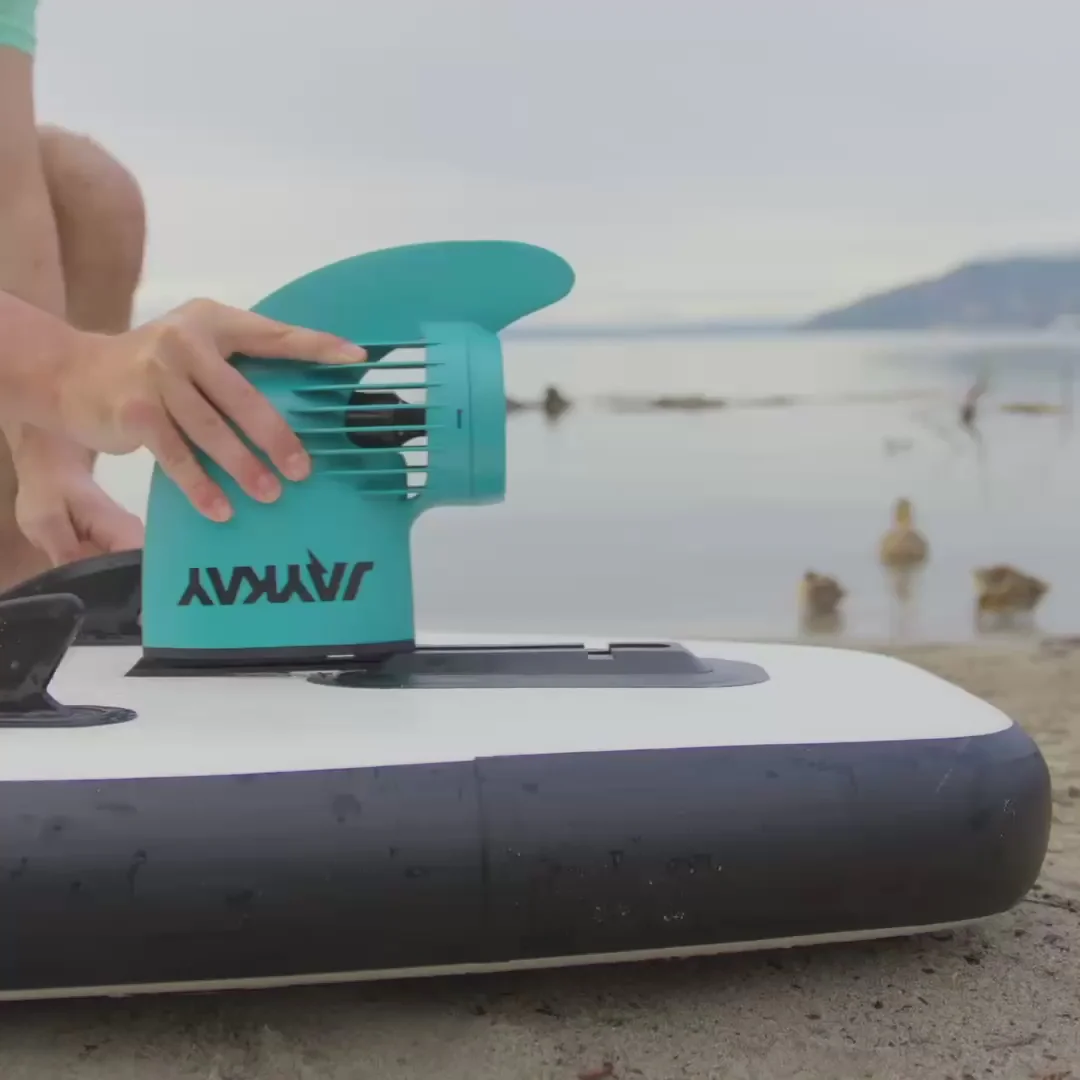

- Slide Motor Into Fin Box: Insert the Jaykay E-Fin 2.0 motor unit into the fin box slot.
- Secure with Provided Fastener: Use the included thumbscrew or Allen wrench bolt to tighten the motor securely.
How to Attach the Battery Pack?
The battery pack comes with durable, adjustable straps or mounting brackets designed to fit securely onto your paddleboard deck or carry handle area. Position the battery for your preferred weight balance and secure using these straps.
How to Connect Electrical Components Safely?
Simply align and connect the waterproof plug-and-play connectors between the battery pack and motor. The connectors are keyed to prevent incorrect insertion.
What Safety Precautions and Waterproofing Steps Should You Follow During Installation?
Ensuring Electrical Safety and Preventing Water Damage
- Perform Setup in Dry Conditions: To avoid electrical hazards, install components where they remain dry until fully secured.
- Regularly Inspect Connectors and Seals: Periodic maintenance ensures no water ingress compromises the system.
Thanks to the integrated waterproof design of the Jaykay system, additional waterproof sealants or manual circuit protection installations are not required.
How to Troubleshoot Common Issues After Installing an Electric SUP Motor?
Quick Fixes for Connectivity and Power Issues
- Verify Connection Securement: Ensure plug-and-play connectors are fully engaged.
- Charge Battery Fully: Confirm battery is charged according to Jaykay guidelines.
Addressing Motor Performance Concerns
- Inspect for Physical Obstructions: Remove debris from propeller and motor housing.
- Contact Jaykay Support: For unresolved issues, utilize manufacturer support for diagnostics.
